TAPMATIC X系列扭矩控制自動回車攻絲裝置
只用于右旋攻絲
應用：
·用于鉆床和銑床上的手動操作
特點:
·自動進給確保高質量的螺紋
·扭矩控制防止絲錐崩牙
·可調節自動進給達到精確的螺紋深度
·鋼的套筒芯軸
·1.75:1回車比率
·不包括聯接芯軸
*軸另購
|
|
貨號 |
型號 |
加工能力 |
直徑 |
安裝 |
長度 |
最大轉速 |
重量 |
價格(1件起訂) |
購買 |
| |
|
|
|
|
|
|
|
1 |
1 |
1 |
|
| 85-001-149 |
90X |
1/2"- 1 - 1/8", 10mm - 28mm, NP - 3/4" |
4-1/8" |
4JT |
8-5/8" |
600RPM |
6.63 kg |
30658.62 |
30658.62 |
30658.62 |
|
| 85-001-148 |
70X |
#10 - 5/8", 5mm - 16mm, NP - 1/8" |
3" |
3/4"-16 |
6-5/8" |
1,200 RPM |
2.64 kg |
22311.48 |
22311.48 |
22311.48 |
|
| 85-001-145 |
70X |
#10 - 5/8", 5mm - 16mm, NP - 1/8" |
3" |
3JT |
6-5/8" |
1,200 RPM |
2.58 kg |
22289.78 |
22289.78 |
22289.78 |
|
| 85-001-144 |
50X |
#6 - 1/2" , 3mm - 12mm |
2-3/4" |
3/4"-16 |
5-3/4" |
1,500 RPM |
1.89 kg |
16595.49 |
16595.49 |
16595.49 |
|
| 85-001-143 |
50X |
#6 - 1/2" , 3mm - 12mm |
2-3/4" |
5/8"-16 |
5-3/4" |
1,500 RPM |
1.89 kg |
16595.49 |
16595.49 |
16595.49 |
|
| 85-001-142 |
50X |
#6 - 1/2" , 3mm - 12mm |
2-3/4" |
1/2"-20 |
5-3/4" |
1,500 RPM |
1.89 kg |
16595.49 |
16595.49 |
16595.49 |
|
| 85-001-140 |
50X |
#6 - 1/2" , 3mm - 12mm |
2-3/4" |
33JT |
5-3/4" |
1,500 RPM |
1.84 kg |
16579.91 |
16579.91 |
16579.91 |
|
| 85-001-139 |
30X |
#0 - 1/4". 1.4mm - 7mm |
1-3/16" |
1/2"-20 |
3-3/4" |
2,000 RPM |
0.71 kg |
12429.44 |
12429.44 |
12429.44 |
|
| 85-001-138 |
30X |
#0 - 1/4". 1.4mm - 7mm |
1-3/16" |
3/8"-24 |
3-3/4" |
2,000 RPM |
0.71 kg |
12429.44 |
12429.44 |
12429.44 |
|
| 85-001-137 |
30X |
#0 - 1/4". 1.4mm - 7mm |
1-3/16" |
6JT |
3-3/4" |
2,000 RPM |
0.69 kg |
12423.64 |
12423.64 |
12423.64 |
|

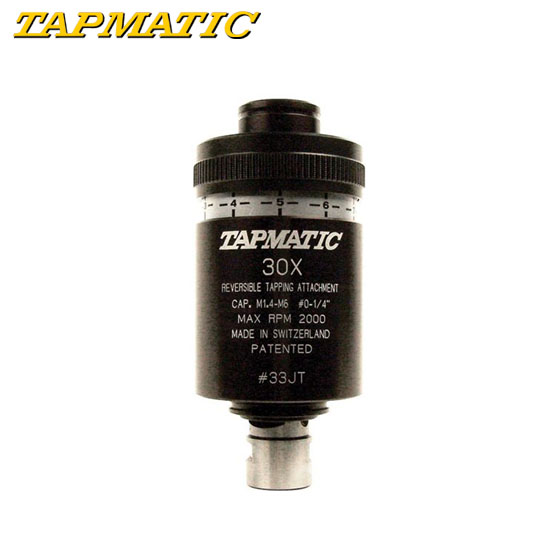

| 85-001-136 |
30X |
#0 - 1/4". 1.4mm - 7mm |
1-3/16" |
33JT |
3-3/4" |
2,000 RPM |
0.69 kg |
12423.64 |
12423.64 |
12423.64 |
|
|
